Installing the amplifier

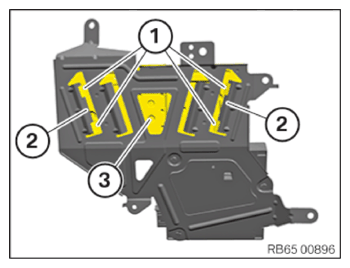

• The lugs (1) of the amplifier (3) must be correctly pushed into the guides (2) on the holder.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Push the amplifier (3) towards the bottom into the holder.
• Connect and lock the plug connections (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL AT LEFT .
• Refer to INSTALLING THE BACKREST SIDE SECTION ON THE REAR SEAT BACKREST .
• Refer to INSTALLING THE COVER OF THE SEAT BELT FINISHER STRIP .
• Refer to INSTALLING THE FLAP IN THE LEFT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING ROLLER COVER FOR LUGGAGE COMPARTMENT .
• Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
