11 00 039 Checking compression of all cylinders using scantool

Special tools required:

• 11 0 222
• 11 8 732
• 11 8 731
• 2 410 242

Preliminary work needed:

• Read out the fault memory
• Rectify faults
• Delete fault memory
• Remove spark plugs

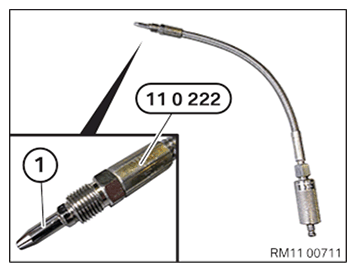

Unscrew tip (1) from special tool 11 0 222.

Courtesy of BMW OF NORTH AMERICA, INC.

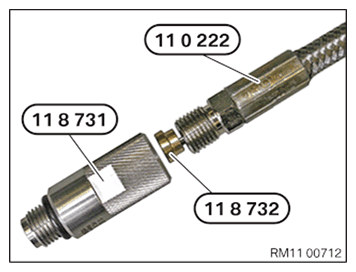

Prepare special tool 11 0 222 in conjunction with 11 8 732 and 11 8 731.

Screw special tool 11 0 222 into special tool 11 8 731 to 10 Nm  .

Courtesy of BMW OF NORTH AMERICA, INC.

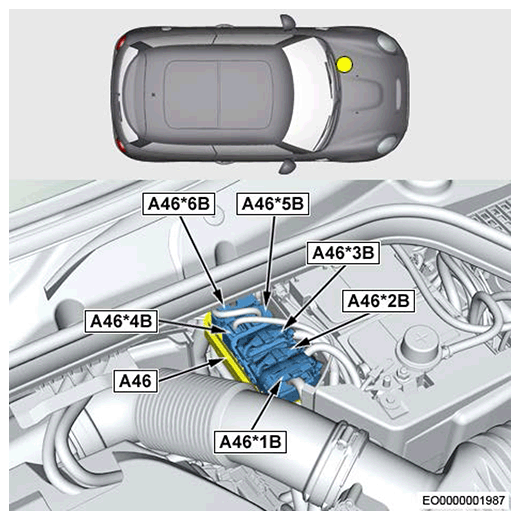

Disconnect plug connection A46*6B on the DME control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

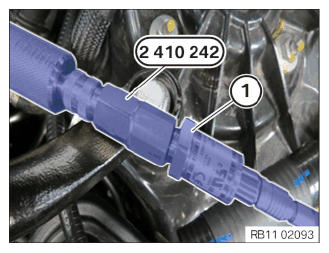

Connect special tool 2 410 242 to special tool 11 0 222 with the bayonet closure.

Screw in the 100-bar sensor (1) on the special tool 2 410 242 hand-tight.

Connect 100-Bar sensor (1) with the Integrated Measurement Interface Box.

Courtesy of BMW OF NORTH AMERICA, INC.

Illustration: N74.

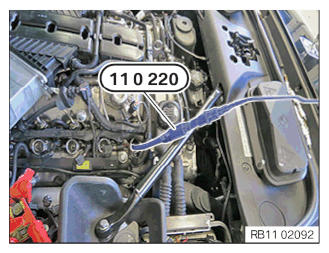

Manually screw special tool 11 0 222 into the spark plug thread.

Courtesy of BMW OF NORTH AMERICA, INC.

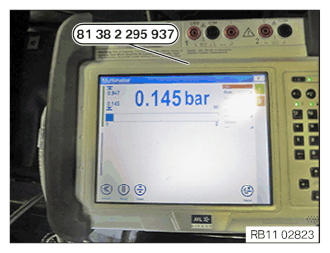

Follow diagnosis instruction.

Diagnosis path:  Drive -> Motor Electronics -> compression test.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install spark plugs
• Connect all of the connectors to the injectors
• Delete fault memory
