Installing left mount

Position fixture for the right (2) .
Tighten the screws (1) .

TIGHTENING TORQUES SPECIFICATION

mount
M6x16	Tightening torque	8 Nm

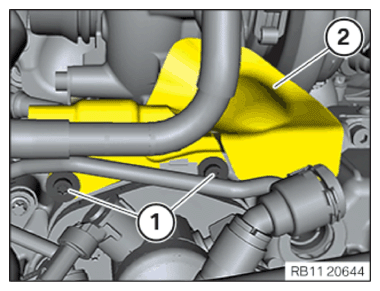

G15264897

Courtesy of BMW OF NORTH AMERICA, INC.
