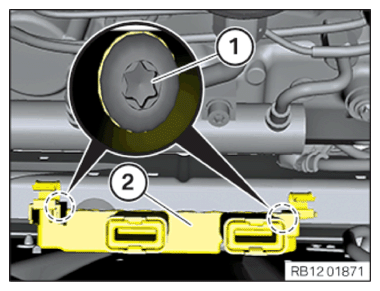

Installing mount for DME master control module support

• Position mount for DME master control module (2)  .
• Tighten the screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Mount for DME master control module
  M6x13 screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

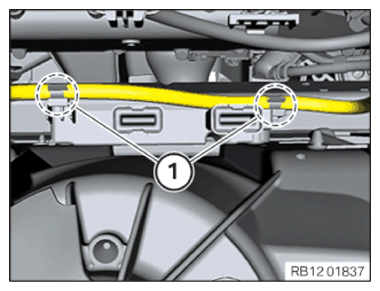

• Clip positive battery cable in at holders (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
