Installing left power window switch

When replacing the power window switch: remounting switch trim

• Loosen the switch trim (1) on both sides at the marked points.
• Remove switch trim (1) from power window switch (2).
• Replace power window switch (2).

  Parts:  Power window switch

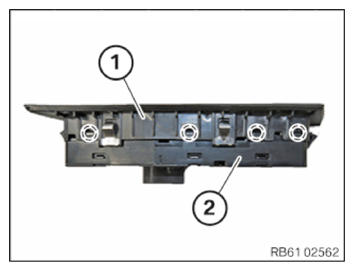

• Position switch trim (1) at the power window switch (2) and clip in on both sides at the marked points.

Courtesy of BMW OF NORTH AMERICA, INC.

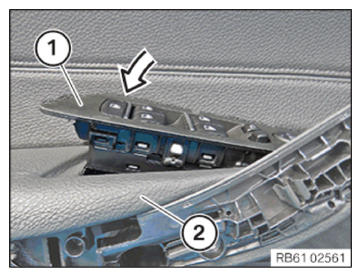

• Thread the power window switch with the switch trim (1) in the arrow direction into the door trim panel (2) and engage it.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING FRONT DOOR TRIM PANEL .

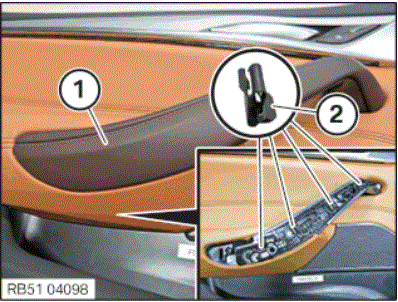

• Attaching the cover to the door handle.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Renew the clamps (2).

    Parts:  Clamps

  • Align the cover (1) on the door handle and snap it into the clamps (2).
• Refer to INSTALLING THE MIRROR TRIANGLE COVER .
