Install backrest side section

WARNING: Airbag unit.
Danger! Immobilization period-threatening injuries!

Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

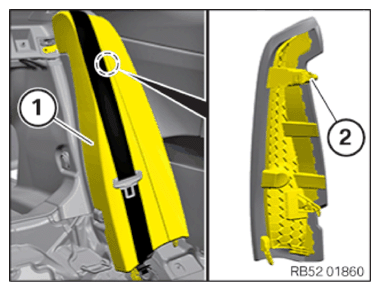

Insert the backrest side section (1) into the guide at the bottom and position it correctly.
Clip in the backrest side section (1) on the mounting element (2).

Courtesy of BMW OF NORTH AMERICA, INC.

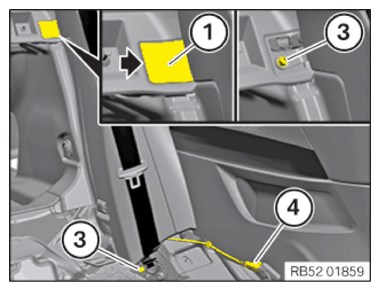

Replace screws (3).
Parts: Screws

Tighten the screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Backrest side section with side airbag
M6x20 Replace screw.	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the trim (1) (arrow).
Connect connectors (4) and lock.
The connector must engage audibly.
- Disconnecting all battery ground leads
See DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .

Courtesy of BMW OF NORTH AMERICA, INC.
- Activating the 48 V electrical system
Precondition

Ignition is switched off.
NOTE:
RISK OF DAMAGE
Damage to the 48-V battery
If a 48-V battery that is disconnected from the electrical system is activated, the battery electronics will be damaged.
- Only ever activate the 48 V electrical system when the 48 V battery is fully connected up.

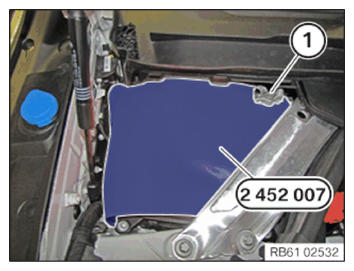

Raise the battery ground cable (1).
Remove special tool 2 452 007.

Courtesy of BMW OF NORTH AMERICA, INC.

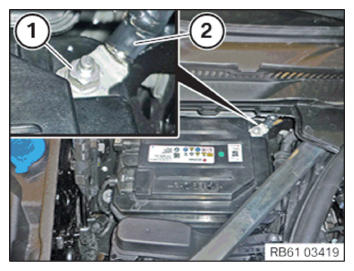

Release the negative battery cable (2) of the 48-V battery from the attachment.
Position the negative battery cable (2) of the 48-V battery on the negative battery terminal.

Tighten the nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Negative battery cable to 48 -V battery
Nut M8	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

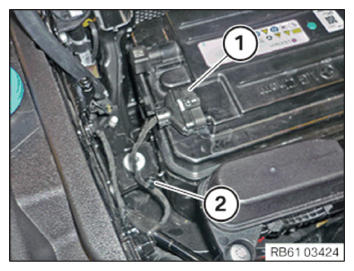

Connect the connector (1) of the CAN bus and lock it.
Clip in the clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.

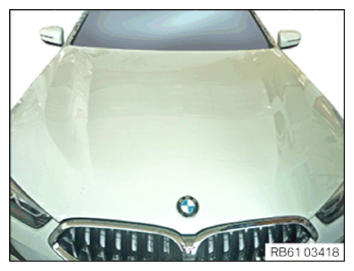

Activate the 48 V electrical system by closing the hood.
The activation takes place automatically.

Courtesy of BMW OF NORTH AMERICA, INC.
