Installing SPORT button
Installing SPORT button

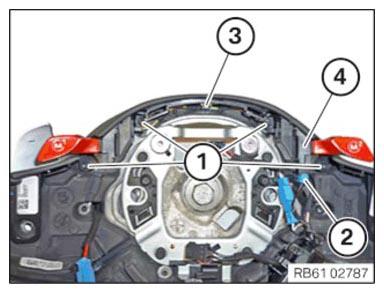

Position SPORT button
(4)
on both sides.
Feed in cable
(3)
.
Tighten the screws
(1)
.
TIGHTENING TORQUE SPECIFICATIONS
SPORT button
Screw TS5x12
Tightening torque
2 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors
(2)
and lock.
Courtesy of BMW OF NORTH AMERICA, INC.
