Install the BDC control unit

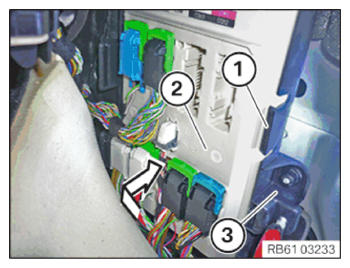

- Feed the BDC control unit (2) into the holder (3) in the arrow direction.
- Engage the BDC control unit (2) into the detent (1).
- Connect all connectors and lock.

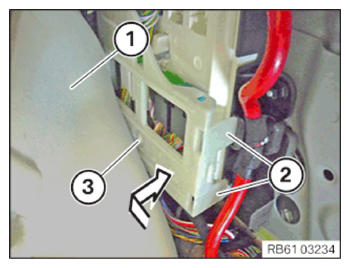

- Feed in the cover (3) in the arrow direction and engage it into the detents (2).
- Position the carpet (1).

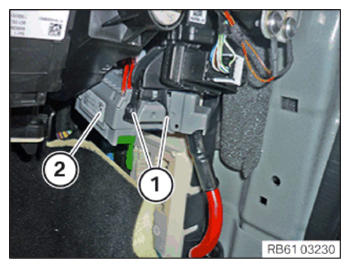

- Feed in the power distribution (2) upwards and engage it correctly into the detents (1).
Follow-up work
- Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
- Refer to INSTALLING INSIDE RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
