Audio, Navigation, Anti-Theft, Airbag Control -- Repair -- M3 (G80)
>>
65 12 Audio Amplifier, Head Unit, Subwoofer
>>
65 12 816 Replacing Headunit High (M3 base, M3 Competition, M3 Competition M xDrive, M3 CS)
>>
Replacing the head unit
Replacing the head unit

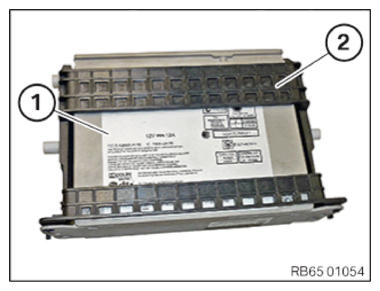

Feed the head unit
(1)
forwards out of the holder
(2)
and remove
Courtesy of BMW OF NORTH AMERICA, INC.
Replace head unit
Parts:
Head unit
Guide the head unit
(1)
back into the holder
(2)
and position
Courtesy of BMW OF NORTH AMERICA, INC.
