Remove Headunit High (HU-H)
NOTE:
RISK OF DAMAGE
Damage to the head unit
The hard disk of the head unit can be damaged by vibrations
Damage to the head unit
The hard disk of the head unit can be damaged by vibrations
- Carry out mechanical work on the head unit and adjacent components with care
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING CUP HOLDER .
- Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
- Refer to REMOVING THE CENTER CONSOLE TRIM .
- Refer to REMOVING THE DECORATIVE TRIM ON THE CENTER CONSOLE ON THE LEFT AND RIGHT .
- Refer to REMOVING THE WIRELESS CHARGING STORAGE .
- Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .
- Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
- Refer to REMOVING THE AUDIO CONTROL UNIT .
NOTE:
RISK OF DAMAGE
Electrostatic discharge
Damage to or destruction of electrical components
Electrostatic discharge
Damage to or destruction of electrical components
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away
- Read and comply with user information on using the associated special tool 12 7 060
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol)
- For additional information see: 61 35... NOTES on ESD (electrostatic discharge) protection
NOTE:
RISK OF DAMAGE
Damage to the head unit
The hard disk of the head unit can be damaged by vibrations
Damage to the head unit
The hard disk of the head unit can be damaged by vibrations
- Carry out mechanical work on the head unit and adjacent components with care

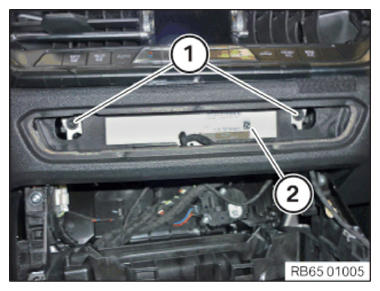

- Release the screws (1) on head unit (2)
- Pull the head unit (2)
a little to the rear and tilt downwards

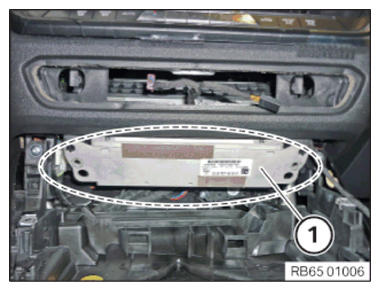

- Feed out the head unit (1)
as shown through the marked one until the connectors behind that are accessible

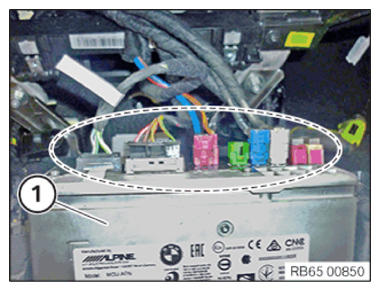

- Unlock and disconnect all the plug connections in the marked area in the correct order
- Remove the head unit (1)
