Installing the steering column

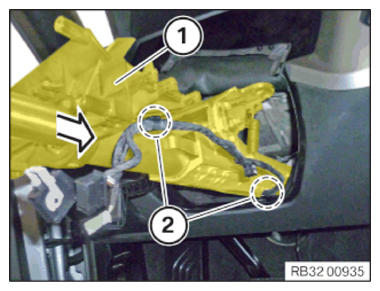

• Carefully feed in the steering column (1) in arrow direction
• Attach the wiring harness with the holders (2) on the steering column (1)

  Courtesy of BMW OF NORTH AMERICA, INC.

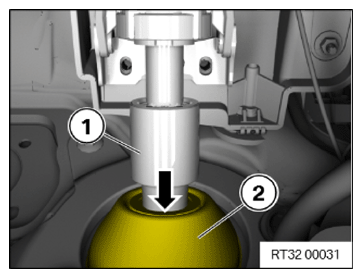

• Guide the steering column (1) in the steering shaft seal (2) during installation

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the steering column (2)
• Screw the nuts (1) by a few turns

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the steering column (2)
• Screw the nuts (1) by a few turns

  Courtesy of BMW OF NORTH AMERICA, INC.

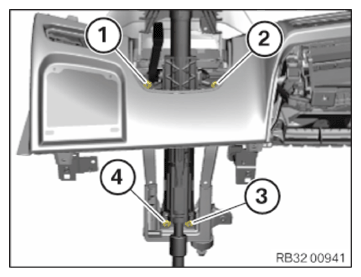

• Nuts must be tightened in the sequence (1) to (4)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FOR REUSING: RECUT THE SCREW THREAD .
• Refer to INSTALLING STEERING SHAFT, BOTTOM .
• Refer to CLIPPING IN THE COOLANT LINE .
• Refer to INSTALLING THE CONTROL UNIT HOLDER .
• Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
• Refer to INSTALLING THE STRUT BRACE .
• Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
• Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to CHECKING THE STRAIGHT-AHEAD DRIVING POSITION OF THE STEERING WHEEL .
• Refer to CHECKING THE AIRBAG FOR FUNCTION .
• Refer to FOR TRIGGERED AIRBAG UNIT: REPLACING THE M SPORT STEERING WHEEL AND THE HORN PLATE .
