Install steering column shroud lower section

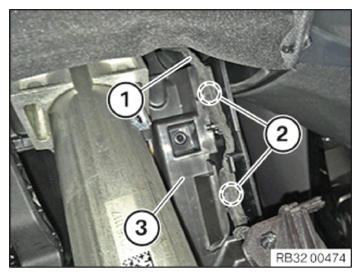

• Position steering column shroud lower section (3)
• Secure the line (1) on the holders (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

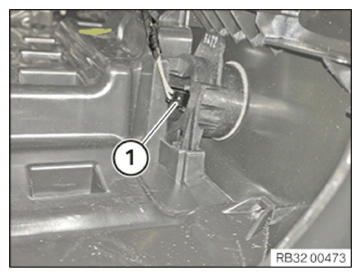

• Connect the connector (1)

Courtesy of BMW OF NORTH AMERICA, INC.

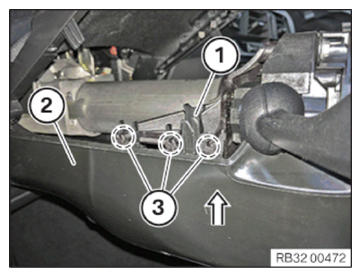

• Align the steering column shroud lower section (2) to the steering column using the retaining lug (1)

• Push the steering column shroud lower section (2) up in the direction of the arrow until the holders (3) engage

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
