62 11 070 Replace Encoding Connector

WARNING: This page is about a different car, the 2002 BMW M Roadster, 2002 BMW M Coupe, 2001 BMW M Roadster, and 2001 BMW M Coupe. However, it is still accessible from the selected car via links, so may be relevant.

compact

Removing instrument cluster, break open retaining frame with screwdriver and remove encoding connector.

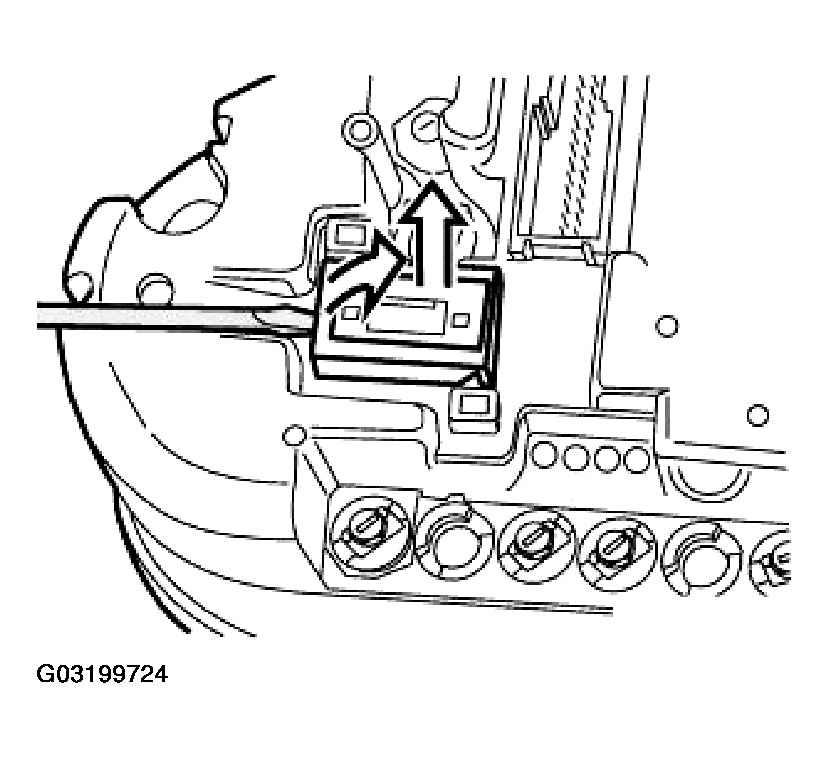

Fig 1: Removing Encoding Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Insert encoding connector and clip in new retaining frame.

CAUTION: The new encoding connector must be checked against the instrument cluster, refer to 62 10 000 CHECK FUNCTION OF INSTRUMENT CLUSTER Tests 15 and 09.

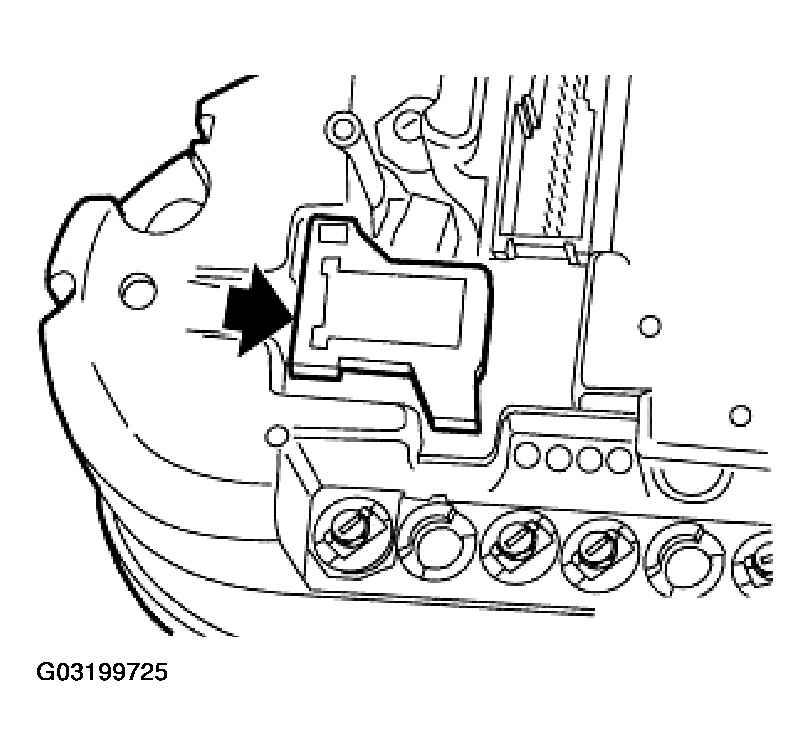

Fig 2: Installing Encoding Connector

Courtesy of BMW OF NORTH AMERICA, INC.
