Removal & Installation

WARNING: This page does not describe the selected car, but rather 34 other vehicles, including the 2004 BMW M3, 2004 BMW 330xi, 2004 BMW 330i, 2004 BMW 330Ci, and 2004 BMW 325xi. However, it is still accessible from the selected car via links, so may be relevant.

Remove front left seat.52 13 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT SEAT (NORMAL/MANUAL)
Detach rubber seal (1). Partially remove side panel, B-pillar (2). Fold back footwell carpet to one side and expose DSC sensor (3). See Fig 1.
Unlock and disconnect plug (1). Release screws (2) and remove sensor. See Fig 2.

NOTE: This is a vibration sensitive component. Implement screw connection correctly or there may be malfunctions in the DSC.

To install, reverse removal procedure. Tighten screws to specification. See TORQUE SPECIFICATIONS .

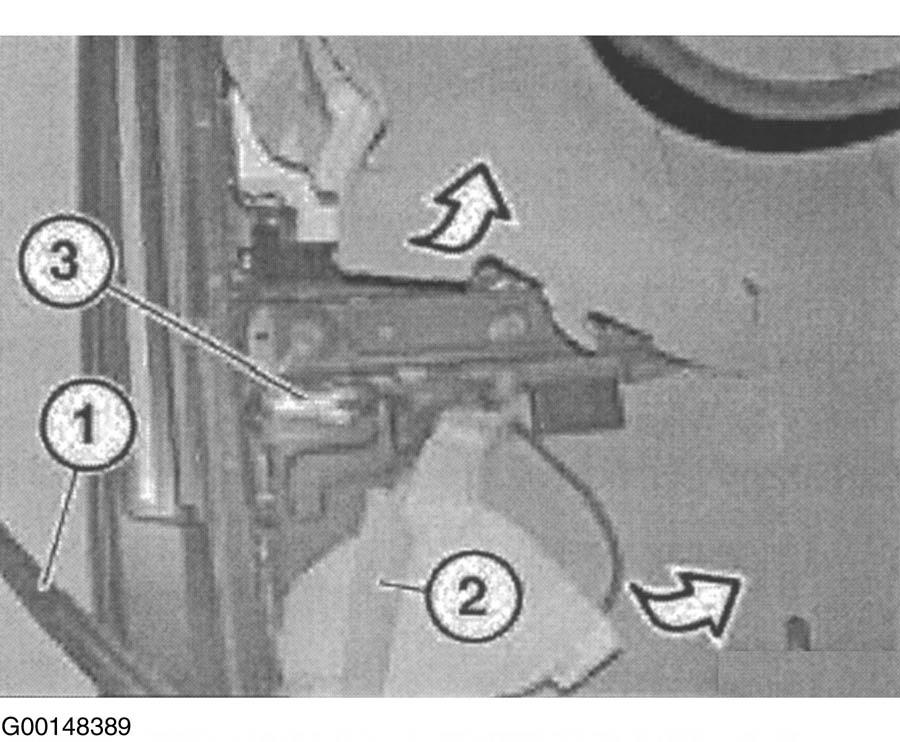

Fig 1: Exposing DSC Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

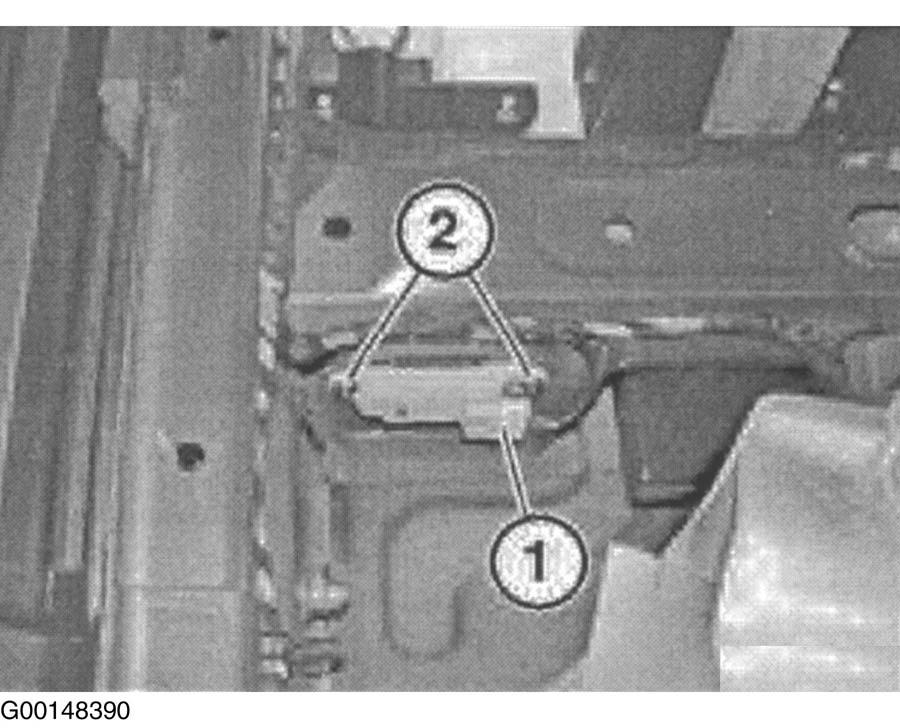

Fig 2: Removing DSC III Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
