Install the transfer case (VTG)

• Lightly grease the gearing (1) in the transfer case (VTG) and the gearing (2) of the automatic transmission
  CONSUMABLE SPECIFICATION



  Ball bearing grease

  100 g, Tube

  81229407174

  Courtesy of BMW OF NORTH AMERICA, INC.

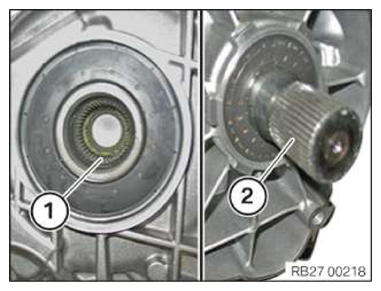

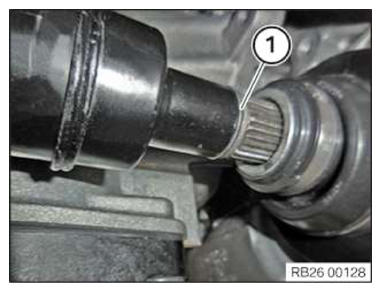

• Replace the O-ring (1) before installing the front prop shaft in the transfer case (VTG)

  Parts:  O-ring

• Apply a thin coat of grease to the gearing of the output flange in the transfer case (VTG)

Courtesy of BMW OF NORTH AMERICA, INC.

• Position the transfer case (VTG) with the help of a support person

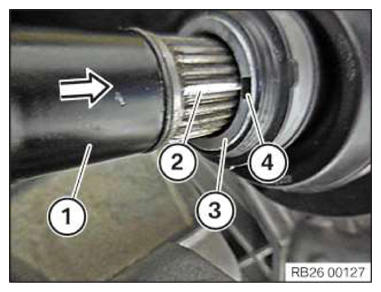

• Position the front prop shaft (1) on the output flange (3) of the transfer case (VTG)
• Align the front prop shaft (1) with the help of the marks (2) and (4)
• Install the transfer case (VTG) and, at the same time, slide the front prop shaft (1) into the output flange (3) of the transfer case (VTG)

• Remove any leaked grease on the prop shaft

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  When assembling, it is essential to observe screwing sequences and tightening torques
  Failure to comply with the regulations can lead to leaks and damage

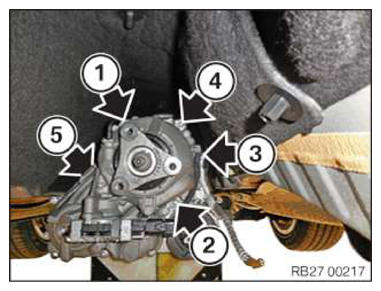

• Tighten screws in the sequence (1) to (5)

Fig 1: Transfer Case Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1) with the transfer case control unit

  Courtesy of BMW OF NORTH AMERICA, INC.

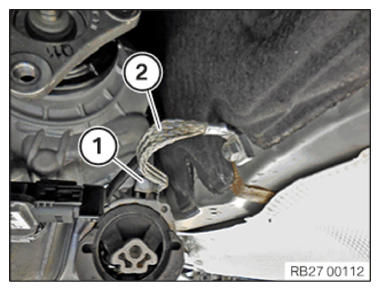

• Install the ground strap (2)
• Tighten down screw (1)

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
• Refer to INSTALLING TRANSMISSION CROSS MEMBER .
• Refer to INSTALLING THE TRANSMISSION BEARING SUPPORT .
• Refer to INSTALLING FRONT HEAT SHIELD .
• Refer to INSTALLING THE REAR HEAT SHIELD .
• Refer to INSTALLING THE LEFT THRUST FIELD .
• Refer to INSTALLING TANK COVER .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
