Install temperature sensor

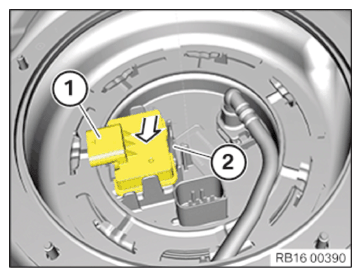

- Insert the temperature sensor (1) from the top
- Make sure the retaining tab (2) is correctly engaged with the detent
- Connect the plug connection (1)
Follow-up work
- Refer to CLOSING THE SERVICE OPENING .
- Refer to INSTALLING THE REAR SEAT .
