Installing the driver's seat module (SMFA)

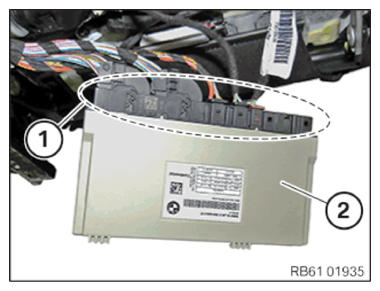

- Connect connector (1)
- Position SMFA (2)
in the holder
- Press the driver's seat module (SMFA) (2)
into the holder until snap-in lugs (1)
engage
Follow-up work
- Refer to INSTALLING FRONT SEAT .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
