Installing the engine wiring harness for sensor system 1

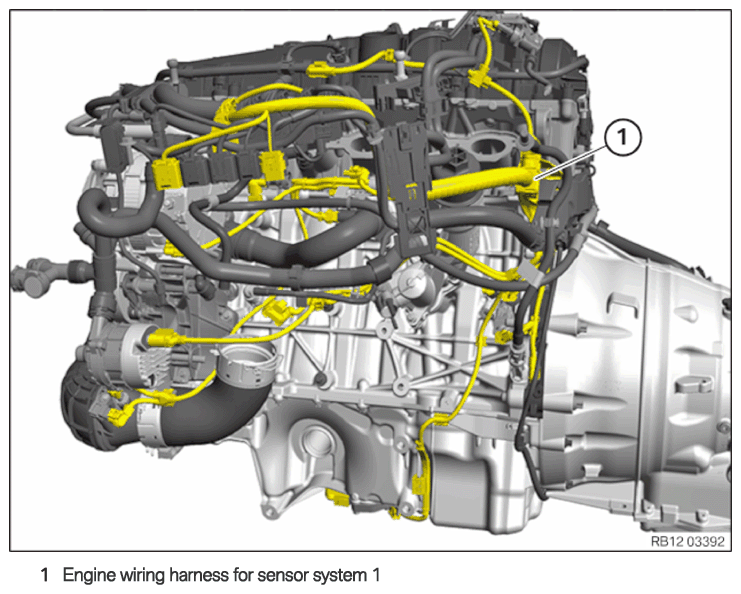

Engine wiring harness for sensor system 1

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses
Trapped, crushed or damaged cables may cause short circuits and malfunctions

Route all cables without abrasions, do not trap and crush

Feed in and install the engine wiring harness (1) for the sensor system 1

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the engine wiring harness (1) for the sensor system 1
Secure the clamps (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.

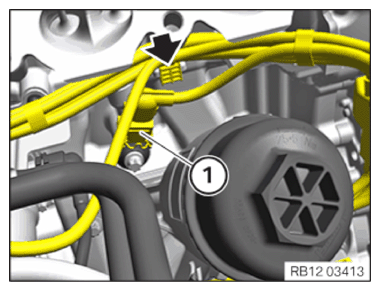

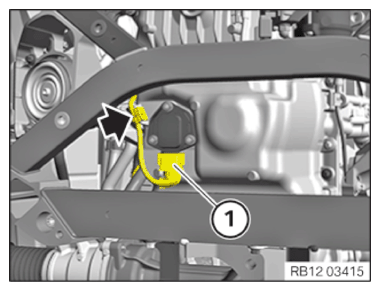

Connect connectors (1) and lock
The connector (1) must engage audibly
Secure clamp (arrow)

Courtesy of BMW OF NORTH AMERICA, INC.

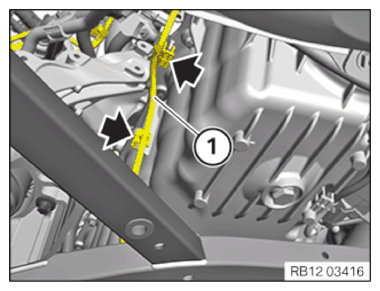

Connect connectors (1) and lock
The connectors (1) must engage audibly
Secure the clamps (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.

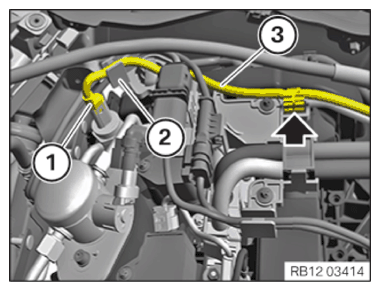

Feed in and install the engine wiring harness (3) for the sensor system 1 in the holder (2)
Secure clamp (arrow)
Connect connectors (1) and lock
The connector (1) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.
Feed in and install the engine wiring harness (2) for the sensor system 1
Tighten down screws (1)

TIGHTENING TORQUE SPECIFICATIONS

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Guide in the wiring harness section (2) and install
Make sure that the lock (arrow) engages correctly
Tighten down screws (1)

TIGHTENING TORQUE SPECIFICATIONS

Cable bracket on rear cylinder head/transmission
M6 x 20	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the connector (1)
The connector (1) must engage audibly
Secure clamp (arrow)

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock
The connectors (1) must engage audibly
Secure the clamps (arrows)

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock

The connectors (1) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.

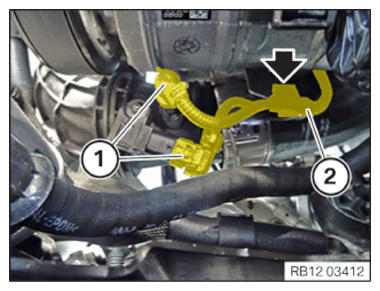

Feed in and install the engine wiring harness (2) for the sensor system 1
Secure clamp (arrow)
Connect connectors (1) and lock
The connectors (1) must engage audibly

Courtesy of BMW OF NORTH AMERICA, INC.

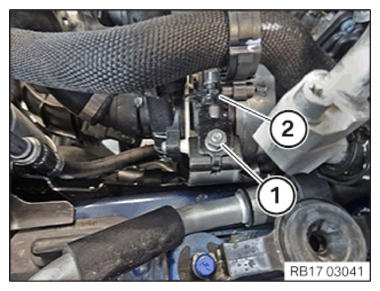

Feed in and install the electrical auxiliary coolant pump (2)
Tighten nut (1)

TIGHTENING TORQUE SPECIFICATIONS

Electric coolant pump to holder
M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING CHARGE AIR COOLER .
Refer to INSTALLING THE COOLANT EXPANSION TANK FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to CONNECTING THE COOLANT LINES FOR THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to SECURING THE ENGINE OIL COOLER .
Refer to INSTALLING FAN COWL .
Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING THE CONTROL UNIT HOLDER .
Refer to PARTIALLY INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to INSTALLING CENTER FIREWALL LOWER PART .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to RECONNECTING ALL BATTERY GROUND LEADS .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING BOTTOM FRONT COVER FROM THE SIDE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
