Installing the DME control unit

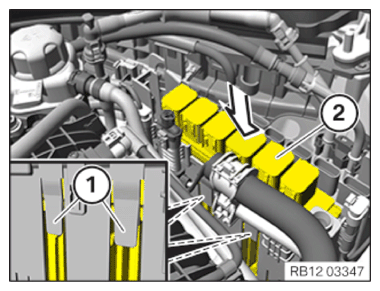

- Guide in the DME control unit (2) in the arrow direction and install it
The locks (1) must engage audibly

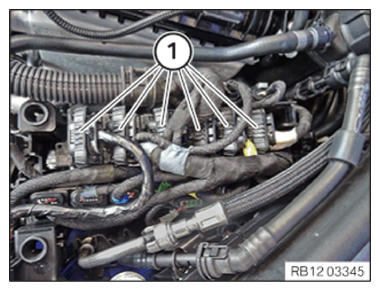

- Connect all connectors (1) and lock
The connectors (1) must engage audibly

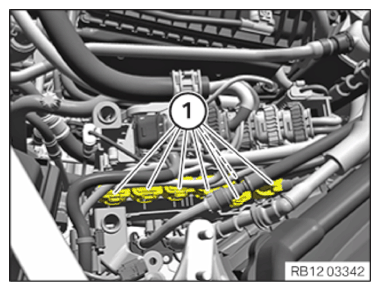

- Connect all connectors (1) and lock
The connectors (1) must engage audibly
Follow-up work
- Refer to INSTALLING THE COVER FOR THE DME CONTROL UNIT .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
- Refer to IF THE DME CONTROL UNIT IS REPLACED: PROGRAM/CODE DME CONTROL UNIT .
