Remove the LTE compensator

Preliminary work

• Refer to REMOVING REAR SEAT BENCH .

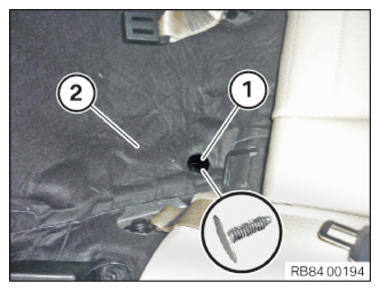

• Release clip (1)  and fold up the sound insulation (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

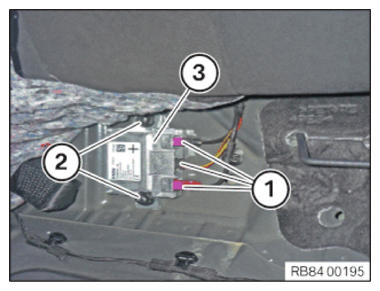

• Unlock plug connection (1)  and disconnect
• Loosen nuts (2)
• Remove the LTE compensator (3)

Courtesy of BMW OF NORTH AMERICA, INC.
