Remove the telematics control module

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE REAR MIDDLE HEAD RESTRAINT .
• Refer to TRIM OF THE 3RD BRAKE LIGHT .

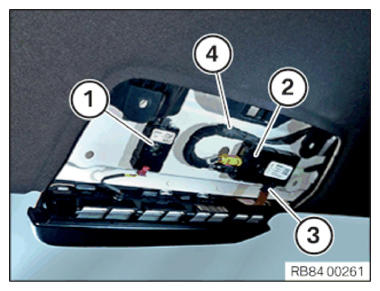

• Loosen screw (1)
• Loosen screw (2)
• Unlock plug connection (3)  and disconnect
• Release the cable clip (4)

  Courtesy of BMW OF NORTH AMERICA, INC.

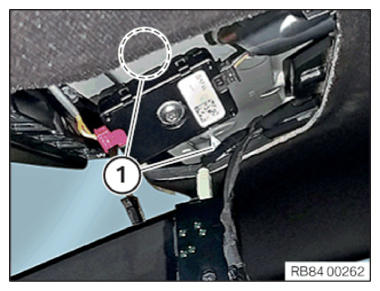

• Release the clips (1)  using the special tool 2 298 505 and position it as shown

  Courtesy of BMW OF NORTH AMERICA, INC.

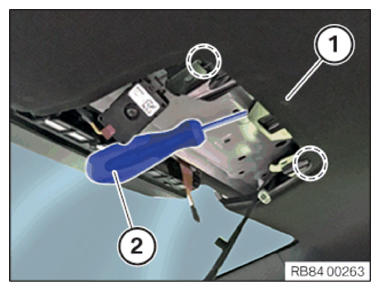

• Lower the headliner (1)  to the marked points by maximum 20 mm
• Insert the screwdriver (2)

  Courtesy of BMW OF NORTH AMERICA, INC.

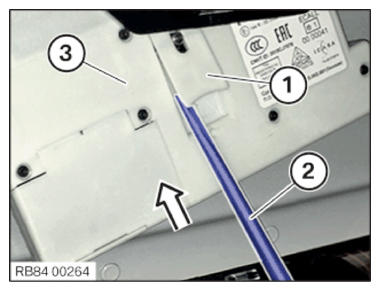

• Unlock the lock (1)  with the screwdriver (2)
• Slide the telematics control module (3)  in the arrow direction and guide it out to the rear

  Courtesy of BMW OF NORTH AMERICA, INC.

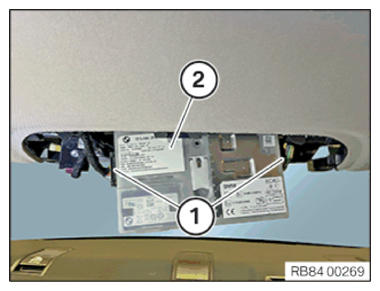

• Unlock plug connections (1)  and disconnect
• Remove the telematics control module (2)

Courtesy of BMW OF NORTH AMERICA, INC.
