Installing the wireless charging storage

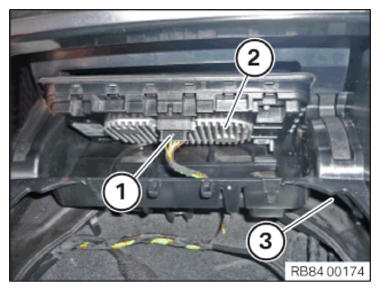

- Connect connectors (1) and lock
- Position the wireless charging storage (2)
in the center console (3)

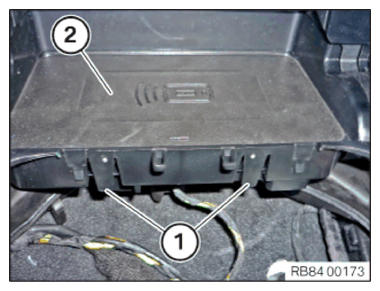

- Press the wireless charging tray (2)
downwards
Detents (1) must engage correctly
Follow-up work
- Refer to INSTALLING THE CUP HOLDER .
