Removing and installing intake plenum (N55T0 Engine) (2016-2018)

Necessary preliminary work:

• Disconnect BATTERY EARTH LEAD .
• Remove INTAKE SILENCER HOUSING .
• Remove IGNITION COIL COVER .
• Remove SOUND INSULATION from center bulkhead upper parts
• Release left CHARGE AIR DUCT  at throttle body.

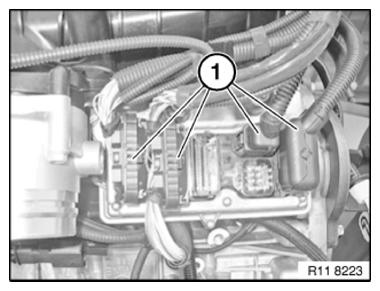

Disconnect all plug connections (1) on engine control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

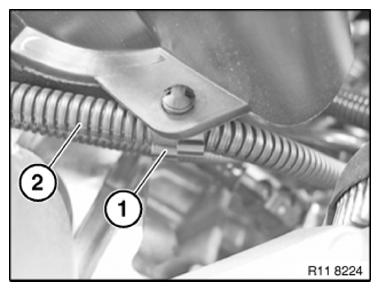

Open retaining clip (1).

Release wiring harness section (2) from retaining clip (1).

Courtesy of BMW OF NORTH AMERICA, INC.

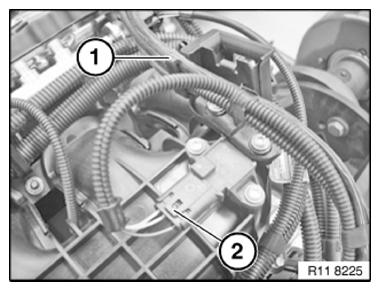

Release all wiring harness sections from holder (1).

Disconnect plug connection (2) at charging pressure sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

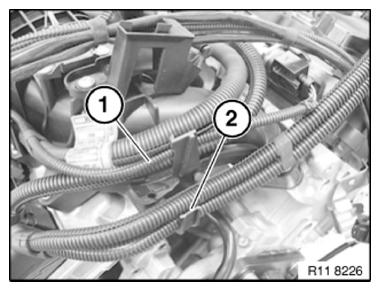

Release all wiring harness sections from holders (1 and 2).

Courtesy of BMW OF NORTH AMERICA, INC.

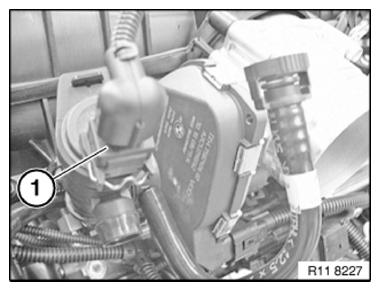

Disconnect plug connection (1) on tank vent valve.

Courtesy of BMW OF NORTH AMERICA, INC.

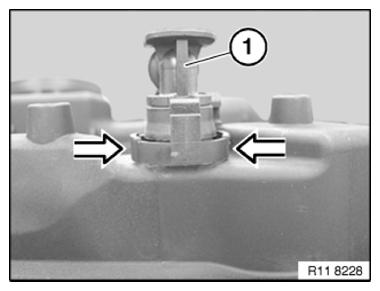

Press and hold down the unlocking device on the vacuum line (1) on the vacuum reservoir (cylinder head cover) in the direction of the arrow.

Detach vacuum line (1) in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach vacuum line (2) in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

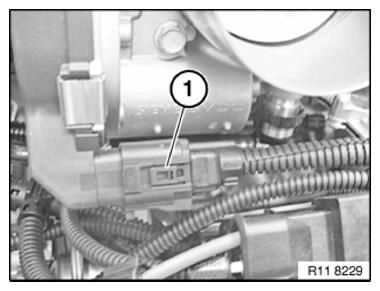

Disconnect plug connection (1) on throttle valve drive.

Courtesy of BMW OF NORTH AMERICA, INC.

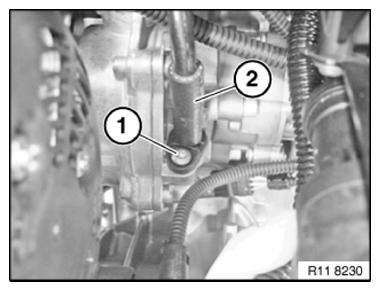

Release screw (1).

Tightening torque: 11 61 2AZ .

Unscrew nuts (2).

Tightening torque: 11 61 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all gaskets.

Assemble engine.
