Removing And Installing Tailgate
Read contents of BODY, GENERAL .
For stripping and rigging operations, refer to texts on KSD CD (job number 41 62 000).
Necessary preliminary tasks:
- Remove PANEL FOR REAR LID .
- Disconnect all plug and socket cable connections on tailgate.
Removal:
Carry over the work step shown symmetrically to the other side of the vehicle.

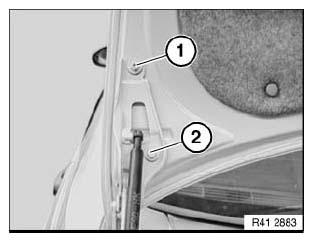

Slacken screws (1)
Unfasten screws (2).
Remove tailgate.
Installation:
Carry over the work step shown symmetrically to the other side of the vehicle.
Install tailgate.
Tighten screws (1) and (2).
Tightening torque 41 62 TAILGATE .
Installation note:
Adjust TAILGATE .
