Removing And Installing/Replacing Hinge For Engine Compartment Lid
WARNING:
Support engine compartment lid in fully opened position with suitable apparatus. Risk of injury.
IMPORTANT:
These instructions only apply to vehicles without active pedestrian protection
!
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
Observe separate procedure for vehicles with ACTIVE PEDESTRIAN PROTECTION !
For stripping and rigging operations, refer to texts on KSD CD (job number 41 61 060).
Necessary preliminary tasks:
Remove GAS PROP FOR ENGINE COMPARTMENT LID .

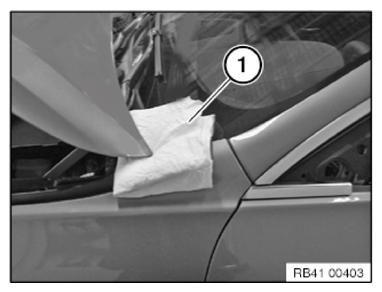

Position suitable cloth under engine compartment lid without gaps.
IMPORTANT:
After nuts have been slackened no lateral forces must be exerted on the engine compartment lid!
Secure engine compartment lid with a second person.
Secure engine compartment lid with a second person.

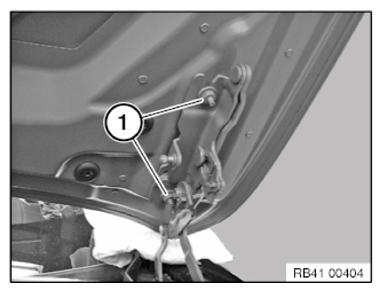

Unscrew nuts (1).
Tightening torque 41 61 BONNET .

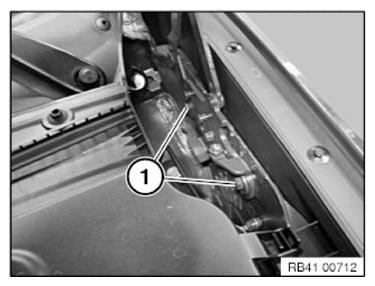

Release screws (1) and remove hinge.
Tightening torque 41 61 BONNET .
Installation note:
ADJUST hinge together with engine compartment lid.
