Replacing Entrance For Door Front Left
Observe procedure for REPAIR STAGE 3 .
Read contents of BODY, GENERAL .
For stripping and rigging operations, refer to the surrounding texts of the KSD (FRU number 41 11 311).
Following new body parts are required (see Electronic Parts Catalogue):

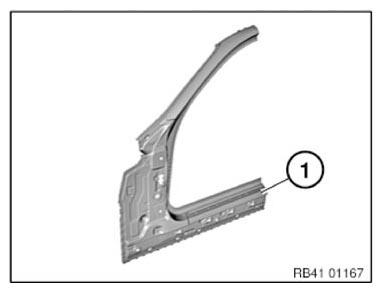

- (1) A-pillar with entrance

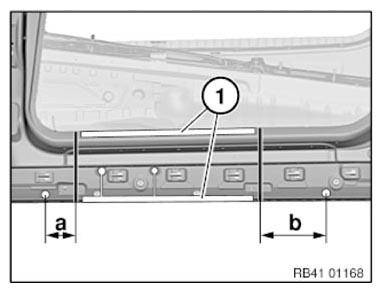

Mark severance cuts in accordance with specified dimensions and cut.
Attention!
Cut outer panel only for following severance cuts.
Dimension a = approx. 100 mm from 20 mm diameter hole.
Dimension b = approx. 195 mm in front of 20 mm diameter hole.
Open welded connections in areas (1).
Installation note:
Mark new part in accordance with severance cuts on vehicle and cut.
Weld in REINFORCEMENT PLATES at severance cuts.
