System functions: Notes

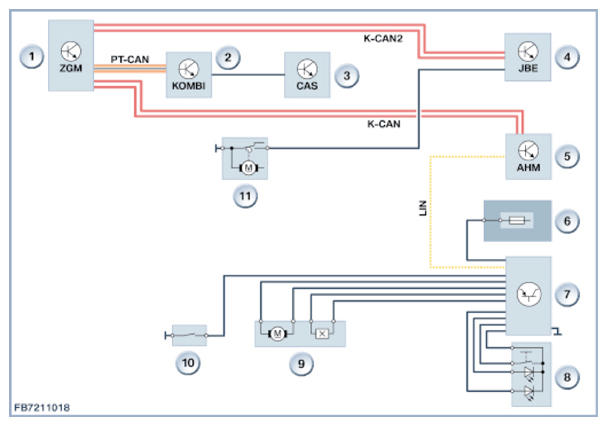

Functional networking using the example of F01
| Item | Explanation |
|---|---|
| 1 | Central gateway module (ZGM) |
| 2 | Instrument panel (KOMBI) |
| 3 | Car access system (CAS) |
| 4 | Junction Box Electronics (JBE) |
| 5 | Trailer Module (AHM) |
| 6 | Power distribution box, right rear |
| 7 | Control unit, fully automatic trailer tow hitch |
| 8 | Button, fully automatic trailer tow hitch, with LEDs |
| 9 | Drive, fully automatic trailer tow hitch |
| 10 | Microswitch, trailer detection |
| 11 | Tailgate/tailgate lock |

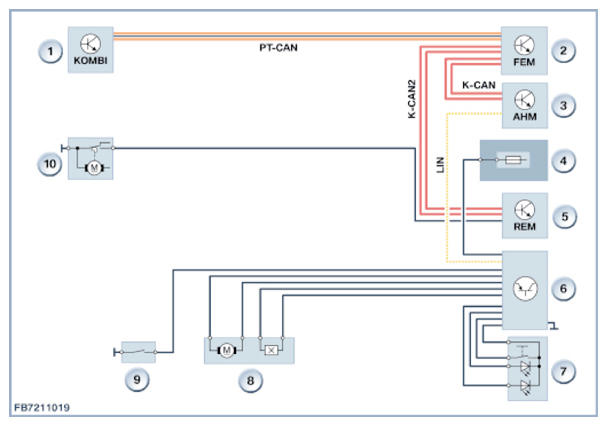

Functional networking using the example of F30
| Item | Explanation |
|---|---|
| 1 | Instrument panel (KOMBI) |
| 2 | Front Electronic Module (FEM) |
| 3 | Trailer Module (AHM) |
| 4 | Power distribution box, right rear |
| 5 | Rear Electronic Module (REM) |
| 6 | Control unit, fully automatic trailer tow hitch |
| 7 | Button, fully automatic trailer tow hitch, with LEDs |
| 8 | Drive, fully automatic trailer tow hitch |
| 9 | Microswitch, trailer detection |
| 10 | Tailgate/tailgate lock |
