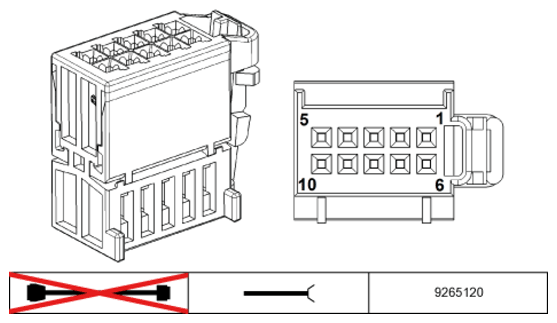

Trailer Module A255*3B Connector End View
Pin Assignments At Plug Connector A255*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | E | Activation, brake light | Body Domain Controller |
| 3 | E/A | K-CAN bus signal | CAN terminator 2 |
| 4 | E/A | K-CAN bus signal | CAN terminator 2 |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | -- | Not used | |
| 8 | E | Actuation, turn signal light, right | Body Domain Controller |
| 9 | -- | Not used | |
| 10 | -- | Not used |
