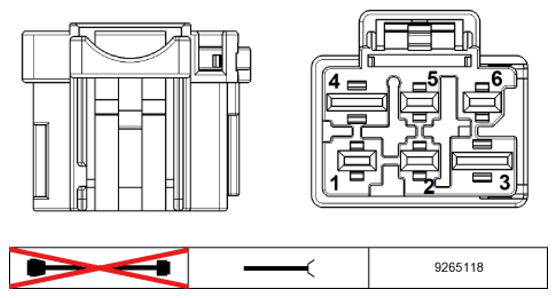

Trailer Module A255*2B Connector End View
Pin Assignments At Plug Connector A255*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Power supply, terminal 30B | Fuse F282 |
| 2 | M | Ground | Ground point |
| 3 | E | Power supply, terminal 30F | Fuse F289 |
| 4 | E | Power supply, terminal 30F | Fuse F240 |
| 5 | -- | Not used | |
| 6 | E | Power supply, terminal 30B from 2017_03 | Fuse F284 |
