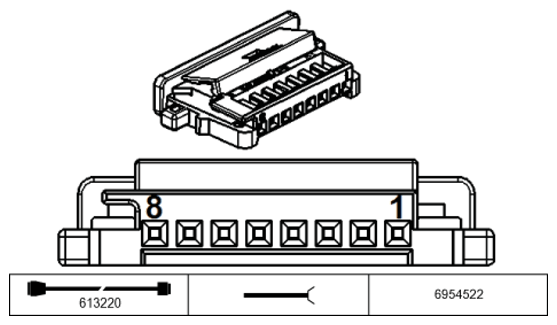

Power Control Unit N7*2B Connector End View
Pin Assignments At Plug Connector N7*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Power supply, terminal 30F | Fuse F13 |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | E | Wake-up signal, terminal 15 | Body Domain Controller |
| 5 | -- | Not used | |
| 6 | E/A | PT-CAN bus signal | CAN terminator 6 |
| 7 | E/A | PT-CAN bus signal | CAN terminator 6 |
| 8 | -- | Not used |
