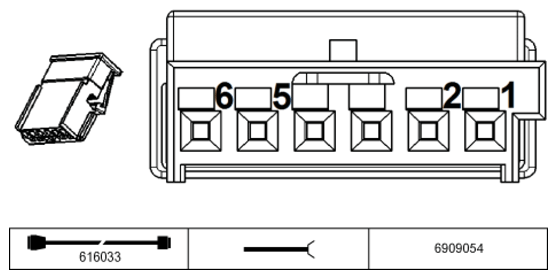

Electronic Night Vision Module A80*3B Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector A80*3B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
E |
Supply, terminal 15 |
Fuse F208 |
| 2 |
M |
Ground |
Ground point |
| 3 |
-- |
Not used |
|
| 4 |
M |
Shield |
Headunit |
| 5 |
A |
Video signal |
Headunit |
| 6 |
A |
Video signal |
Headunit |
