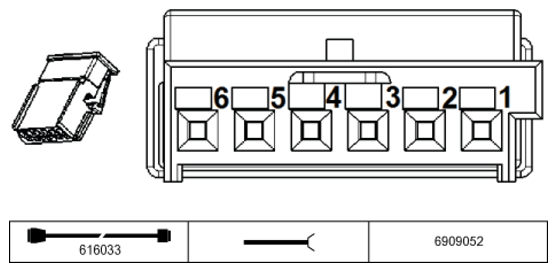

Electronic Night Vision Module A80*1B Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector A80*1B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
-- |
Not used |
|
| 2 |
-- |
Not used |
|
| 3 |
-- |
Not used |
|
| 4 |
-- |
Not used |
|
| 5 |
E/A |
PT-CAN bus signal |
CAN terminator 5 |
| 6 |
E/A |
PT-CAN bus signal |
CAN terminator 5 |
