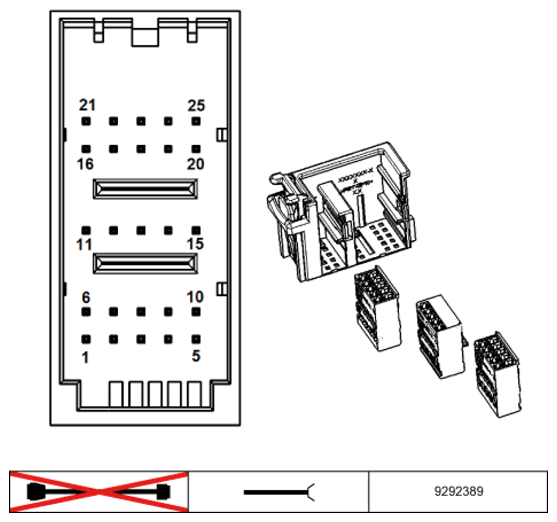

Crash Safety Module A11*2B Connector End View
Pin Assignments At Plug Connector A11*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | A | Airbag activation, positive connection | Gas generators for front passenger airbag |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | A | USA and Korea Airbag activation, positive connection | Gas generators for front passenger airbag |
| 5 | A | Airbag activation, positive connection | Gas generator for front passenger knee airbag |
| 6 | A | Airbag activation, negative connection | Gas generators for front passenger airbag |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | A | USA and Korea Airbag activation, negative connection | Gas generators for front passenger airbag |
| 10 | A | Airbag activation, negative connection | Gas generator for front passenger knee airbag |
| 11 | E | Switch signal | Switch for passenger airbag deactivation |
| 12 | -- | Not used | |
| 13 | E | Switch signal | Switch for passenger airbag deactivation |
| 14 | -- | Not used | |
| 15 | -- | Not used | |
| 16 | A | Airbag activation, negative connection | Gas generators for front passenger airbag |
| 17 | A | Airbag activation, negative connection | Steering column switch cluster |
| 18 | A | Airbag activation, negative connection | Steering column switch cluster |
| 19 | A | USA and Korea Airbag activation, negative connection | Steering column switch cluster |
| 20 | A | Airbag sensor, negative connection | Gas generator for driver knee airbag |
| 21 | A | Airbag activation, positive connection | Gas generators for front passenger airbag |
| 22 | A | Airbag activation, positive connection | Steering column switch cluster |
| 23 | A | Airbag activation, positive connection | Steering column switch cluster |
| 24 | A | USA and Korea Airbag activation, positive connection | Steering column switch cluster |
| 25 | A | Airbag activation, positive connection | Gas generator for driver knee airbag |
