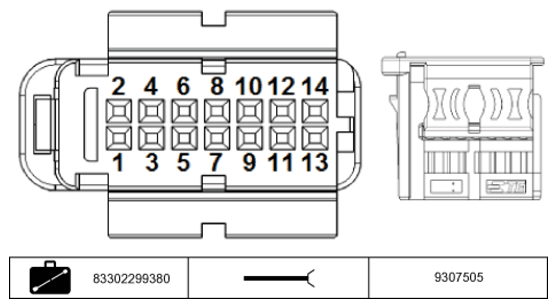

Camera-based Driver Assistance Systems A56*1B Connector End View
Pin Assignments At Plug Connector A56*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E/A | Ethernet data line | Body Domain Controller |
| 2 | E/A | Ethernet data line | Body Domain Controller |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | M | Ground | Ground point |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used | |
| 11 | -- | Not used | |
| 12 | -- | Not used | |
| 13 | E | Supply, terminal 15 | Fuse F90 |
| 14 | -- | Not used |
