Installing the electromechanical steering gear

NOTE: RISK OF DAMAGE
Damage to the track rods or the electromechanical steering gear .
Holding the electromechanical steering gear by the track rods can damage the track rods or the electromechanical steering gear .

Hold the electromechanical steering gear only by its housing.

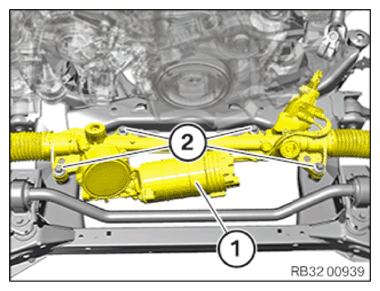

Feed in electromechanical steering gear and position on the front subframe.
Replace screws (2) .
Parts: Screws
Screw in the screws (2) a few turns.

Courtesy of BMW OF NORTH AMERICA, INC.

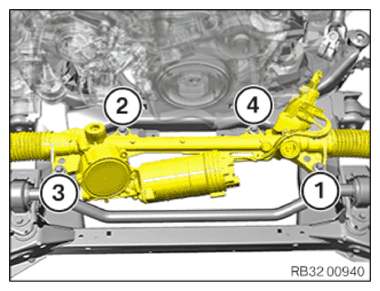

Tighten screws in the sequence (1) to (4) .
Be sure to follow the tightening sequence!

Fig 1: Electromechanical Steering Gear Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Electromechanical steering gear to front subframe
M12 Replace screws. The tightening sequence must strictly be followed and carried out on all screws at the same time! 1: left front 2: right rear 3: right front 4: rear left	1) Tightening torque	60 Nm
	2) Tightening torque	96 Nm
	3) Angle of rotation	90°

Follow-up work

Refer to RAISING THE FRONT AXLE SUPPORT .
Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE PARKED-CAR HEATING .
Refer to SECURING THE TIE ROD ON THE LEFT AND RIGHT OF THE SWIVEL BEARING .
Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .

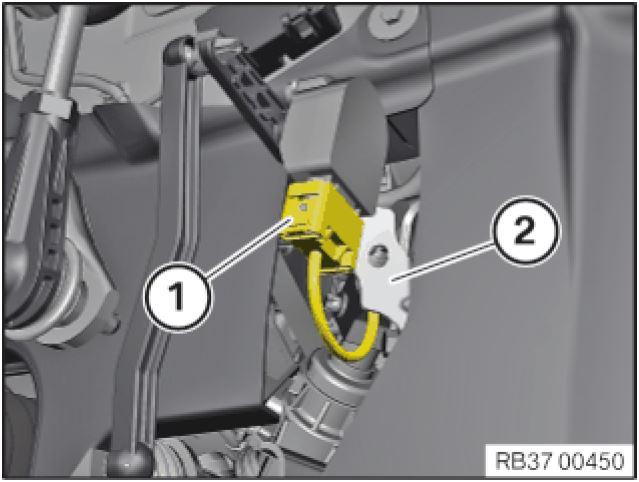

Position the line.
Clip the line into the bracket (2).

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to IF INSTALLED: INSTALL UNDERBODY PROTECTION FOR THE STEERING .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
Refer to INSTALLING THE SIDE PANEL SEAL .
Refer to INSTALLING THE LATERAL HOOD SEALS .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING ACOUSTIC COVER .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
Refer to INSTALLING FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
Refer to PERFORM CHASSIS ALIGNMENT CHECK .
Refer to REPLACEMENT: COMMISSIONING (INITIALIZATION) OF THE ELECTROMECHANICAL STEERING .
