Installing intermediate lever on intake side

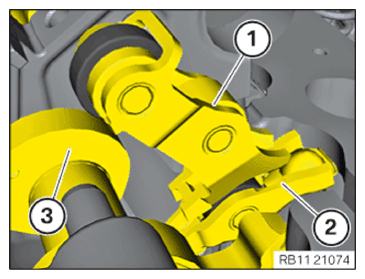

• Position intermediate lever (1)  so that it contacts roller cam follower (2)  and cam of eccentric shaft (3)  .
• Repeat the step for all intermediate levers (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE SLIDING BLOCK OF CYLINDER BANK 2 .
• Refer to INSTALLING TORSION SPRINGS .
• Refer to REMOVING CYLINDER HEAD OF BANK 2 FROM ASSEMBLY JIG .
• Refer to INSTALLING THE LEFT VALVETRONIC SERVOMOTOR (CYLINDER HEAD REMOVED) .
• Refer to INSTALLING LEFT INTAKE AIR PLENUM (ENGINE OR CYLINDER HEAD REMOVED) .
• Refer to INSTALLING THE LEFT CYLINDER HEAD .
• Refer to INSTALLING BOTH LEFT VANOS ADJUSTERS (CYLINDER HEAD INSTALLATION CYLINDER BANK 2) .
• Refer to INSTALLING THE BELT PULLEY ON THE TORSIONAL VIBRATION DAMPER .
• Refer to INSTALLING THE LEFT CYLINDER HEAD COVER .
• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING HEAT SHIELD ON THE BOTTOM .
• Refer to INSTALLING FRONT HEAT SHIELD .
• Refer to INSTALLING BOTH EXHAUST MANIFOLDS .
• Refer to INSTALLING THE HEAT SHIELD OF THE CYLINDER HEAD COVER FOR CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE HEAT SHIELD OF THE CYLINDER HEAD COVER FOR CYLINDERS 1 TO 4 .
• Refer to INSTALLING LEFT AND RIGHT EXHAUST TURBOCHARGERS .
• Refer to MOUNTING FIXTURE ON THE RIGHT .
• Refer to INSTALLING LEFT MOUNT .
• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to INSTALLING CATALYTIC CONVERTER NEAR THE ENGINE ABOVE CYLINDER BANK 1 .
• Refer to INSTALLING UPPER CATALYTIC CONVERTER NEAR ENGINE FOR BANK 2 .
• Refer to INSTALLING HOLDER WITH THE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 2 .
• Refer to INSTALLING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
• Refer to INSTALLING THE LEFT THROTTLE BODY .
• Refer to INSTALLING THE INTAKE PIPE .
• Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING OIL FILLER NECK .
• Refer to CLOSING THE COOLANT PUMPS .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to REMOVING UNDERBODY PROTECTION AT SIDE RIGHT AND LEFT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING COOLANT PUMPS .
• Refer to INSTALLING THE BELT TENSIONER .
• Refer to INSTALLING ALTERNATOR .
• Refer to INSTALLING DRIVE BELT .
• Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to TIGHTENING THE LEFT FRONT-END STRUT .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING HEAT SHIELD, TOP .
• Refer to INSTALLING CONDUIT ON BANK 2 .
• Refer to INSTALLING ENGINE VENTILATION LINE OF CYLINDER BANK 1 .
• Refer to INSTALLING THE TANK VENTILATION LINE OF CYLINDER BANK 1 PARTIALLY .
• Refer to INSTALLING CONDUIT ON BANK 1 .
• Refer to INSTALLING THE ENGINE VENTILATION LINE OF CYLINDER BANK 2 .
• Refer to INSTALLING THE OXYGEN SENSOR MONITOR OF CYLINDER BANK 2 .
• Refer to CHECKING THE POSITION OF THE HEAT SHIELD .
• Refer to INSTALLING EXPANSION TANK FOR THE CHARGE AIR COOLER .
• Refer to INSTALLING COOLANT EXPANSION TANK .
• Refer to INSTALLING THE HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE LAMBDA OXYGEN SENSOR FOR CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE PRIMARY OXYGEN SENSOR FOR CYLINDERS 1 TO 4 .
• Refer to INSTALLING THE LEFT HIGH PRESSURE PUMP .
• Refer to INSTALLING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to ATTACHING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING INJECTORS .
• Refer to CONNECTING THE CONNECTOR OF THE INJECTORS OF CYLINDER BANK 2 .
• Refer to INSTALLING RAIL OF CYLINDER BANK 1 .
• Refer to INSTALLING IGNITION COILS OF CYLINDER BANK 1 .
• Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
• Refer to INSTALLING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
• Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
• Refer to EVACUATING AND CHARGING CONDITIONING .
• Refer to CHECKING ENGINE OIL LEVEL .
