Checking the intermediate lever classification

NOTE: TECHNICAL INFORMATION
All intermediate levers are classified. Only one classification may be used per engine.
All intermediate levers must be reinstalled in the same positions in an engine which has already been in use.

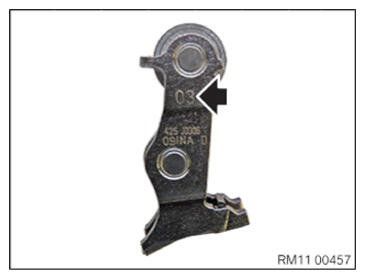

• Checking the intermediate lever classification (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
