Remove LIN power distribution box

Preliminary work

• Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM .
• Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT .

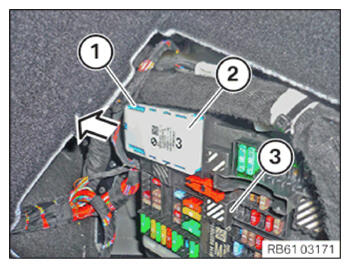

• Release locking mechanism (1)  in direction of arrow.
• Remove LIN power distribution box (2)  from power distribution (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

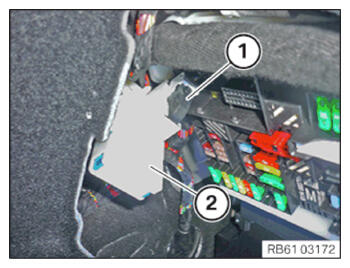

• Unlock and disconnect connector (1)  .
• Remove LIN power distribution box (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.
