General Electrical System -- Repair (F91, F92 & F93)
>>
61 35 Control Units, Modules
>>
61 35 013 Remove and install/replace the LIN power distribution box
>>
Installing the LIN power distribution box
Installing the LIN power distribution box
Connect the plug connector
(1)
to the LIN power distribution box
(2)
and lock it.
Courtesy of BMW OF NORTH AMERICA, INC.

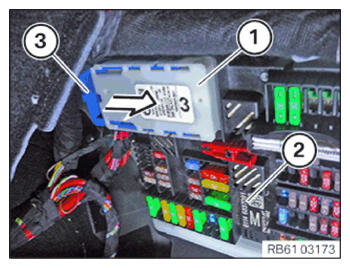

Correctly position the LIN power distribution box
(1)
on the power distribution
(2)
and shift the locking mechanism
(3)
in arrow direction.
Courtesy of BMW OF NORTH AMERICA, INC.
Follow-up work
Refer to
INSTALLING THE FLAP IN THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE RIGHT
.
Refer to
ACTIVATING VEHICLE ELECTRICAL SYSTEM
.
