Remove controller

Preliminary work

• Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM .
• Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
• Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to REMOVING CENTER ARMREST .
• Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
• Refer to REMOVING CUP HOLDER .
• Refer to REMOVING THE WIRELESS CHARGING STORAGE .
• Refer to REMOVING THE CENTER STACK MODULE .

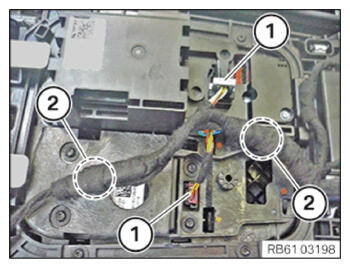

• Unlock and disconnect connector (1)  .
• Loosen the cable clip (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

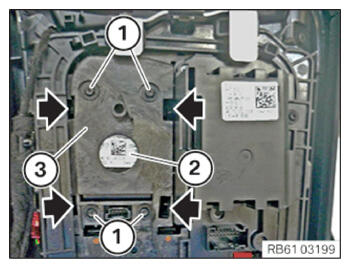

• Loosen screws (1)  .
• Release detents at marked points.
• Remove controller (2)  from the gear selector switch (3)  .

Courtesy of BMW OF NORTH AMERICA, INC.
