Installing the steering column switch cluster (SZL)

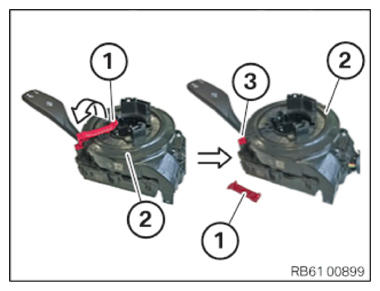

• For replacement:  Break off the transportation retainer (1)  on the steering column switch cluster (SZL) (2)  in arrow direction.

  The fragment (3)  of the transportation retainer (1)  remains in the steering column switch cluster (SZL) (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connector (1)  with the steering column switch cluster (SZL) (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

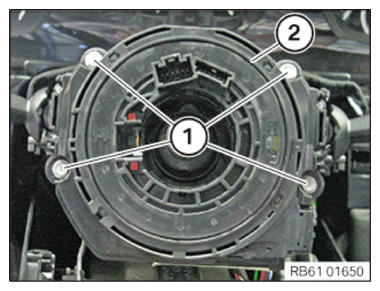

• Position the steering column switch cluster (SZL) (2)  .
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Steering column switch cluster (SZL) to steering column
  Screw TS5x20	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
• Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
• Refer to INSTALLING STEERING WHEEL .
• Refer to INSTALLING AIRBAG UNIT .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
