Home >> BMW >> 2020 >> M4 CS >> Repair and Diagnosis >> Engine Performance >> Specifications >> Firing Order & Cylinder Identification >> Firing Order & Cylinder Identification >> V8 Engine

V8 Engine

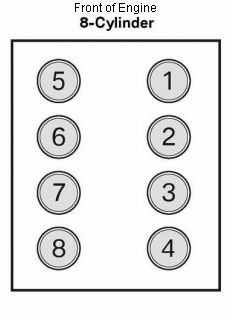

Engine Configuation Firing Order Cylinder Identification
S65-ENG V8 1-5-4-8-7-2-6-3
G00487233
All other V8 1-5-4-8-6-3-7-2
G00487233
