Fit steering column shroud upper section

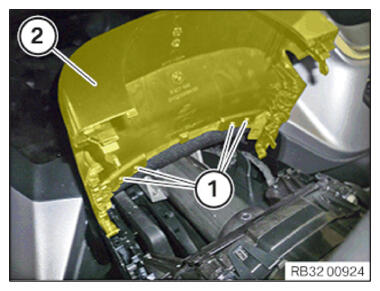

- Position the steering column shroud upper section (2) and clip in the guide at left and right.
- Clip in the gap cover at the holders (1).
NOTE:
Perform the steps on the right and left side.

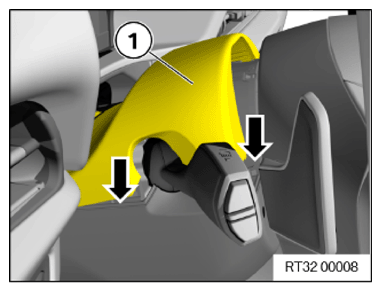

- Position the steering column shroud upper section (1).
- Press the upper section of the steering column shroud (1) downwards in arrow direction.
The upper section of the steering column shroud must engage audibly and perceptibly.

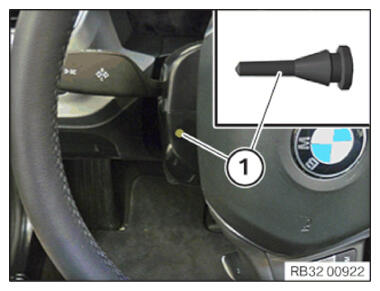

- Close the left and right bore with the rubber plugs (1).
