(Programming wheel electronics (only while using Tire Pressure Monitor SA2VB))
After replacing a tire or wheel electronics, the wheel electronics must be reprogrammed for the tire!
If the programmable wheel electronics are depressurized (tires removed) longer than 2 min, then the tire data set written on the wheel electronics is deleted.
The programmable wheel electronics must be reprogrammed with the tire data set from the QR code on the tire sidewall using the special tool (RDC Tool).
New: If no QR code is available on the tire, the tire data must be programmed manually using the special tool (RDC Tool). See "Programming the tire data (wheel electronics) manually" below.
The exact procedure must be taken from the operating instructions for the special tool (RDC Tool).
Check

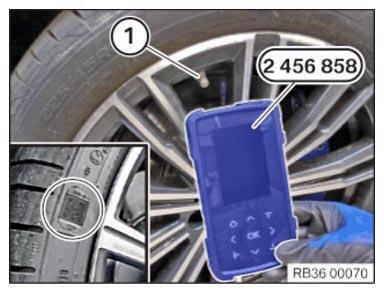

- Use the special tool 2 456 858 to check whether the wheel electronics (1) have already been programmed.
Result
» Wheel electronics (1) have not yet been programmed.
Measure
- Program the wheel electronics (1).
Programming the tire data (wheel electronics) manually
If there is no QR code on the tire, program tire data manually with special tool 2 456 858

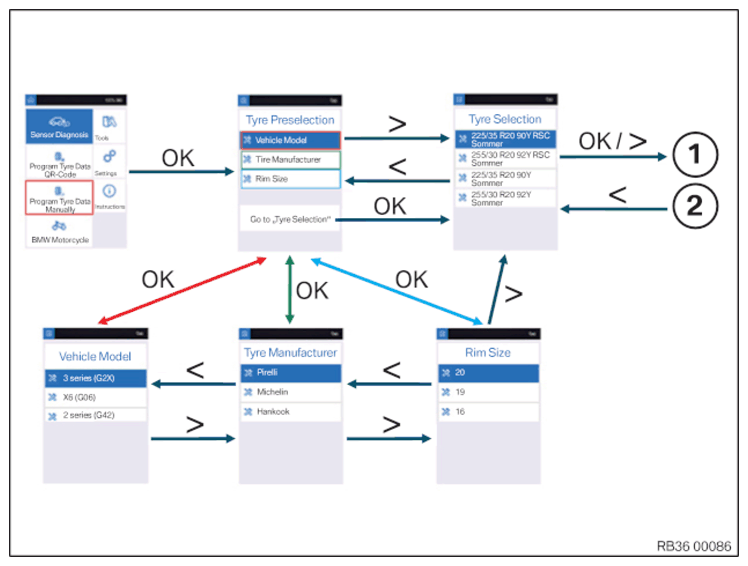

Flowchart for tire data programming:
Manual tire data programming:
-> In the main menu of the RDC Tool, start "manual tire programming".
-> Select vehicle model, tire manufacturer and wheel size.
-> Select the correct tire size.
-> Start programming via the "OK" button or the arrow button ">" (1).
-> The arrow button "<" takes you back to the selection "Vehicle model, tire manufacturer and wheel size".
- With "OK", you can switch between the main and sub-menus. See "Programming other wheel electronics" below.
- You can use the "<" and ">" arrow buttons to directly switch back and forth between the sub-menus. See "Programming other wheel electronics" below.

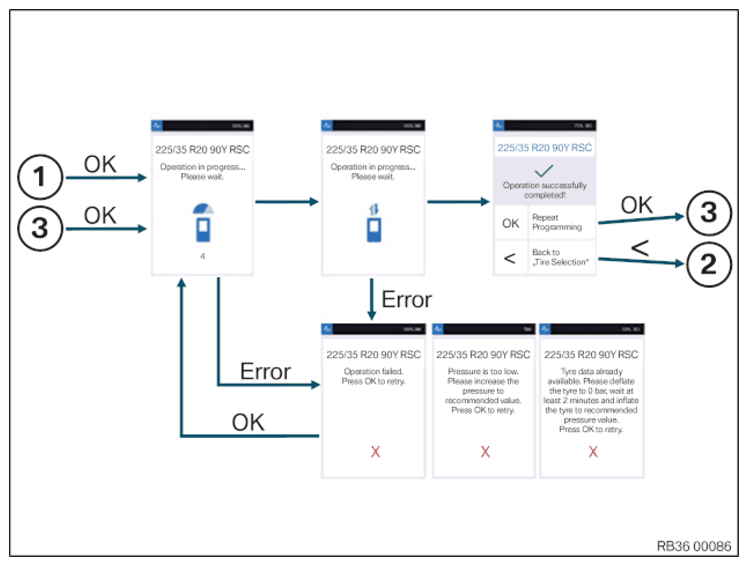

Programming other wheel electronics
-> After successful programming on the sensor (valve), the same programming can be re-started on another sensor by pressing the "OK" button (3).
-> The arrow button "<" (2) takes you back to the tire selection!
-> In the event of a fault message, the "OK" button takes you back to the start of programming.
Programming the wheel electronics
The training video illustrates the programming of wheel electronics using special RDC tool.
The training video is not a replacement for the repair instructions.
- Follow repair instructions!
- Program the wheel electronics (1) with the special tool 2 456 858 .

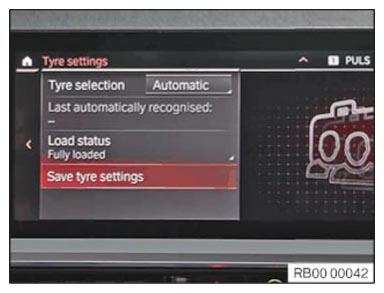

Adjusting the tire setting in the CID (in case of equipment specification with ID7)
- Adjust the tire setting in the central information display (CID).
- Open the menu:
- Select My vehicle in the menu.
- Select Vehicle status in the menu.
- Select Tire pressure monitor (RDC) from the menu.
Enter the settings:
- Select Tire settings from the menu.
- Select tires: Automatic.
- Select the load status of the vehicle.
- Confirm the settings.
The stored tire data is automatically transferred to the vehicle by the wheel electronics.
The vehicle must be driven for this purpose.
- Drive the vehicle to measure the current tire pressure.

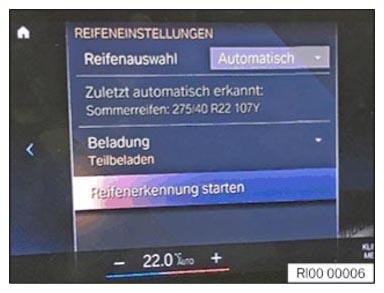

Adjusting the tire setting in the CID (in case of equipment specification with ID8)
- Adjust the tire setting in the central information display (CID).
- Open the menu:
- Select Menu
- Select Live Vehicle
- Select Tire Pressure Monitor
- Select Tire Settings
Enter the settings:
- Select tires: Automatic.
- Select the load status of the vehicle.
- Confirm the settings.
The stored tire data is automatically transferred to the vehicle by the wheel electronics.
The vehicle must be driven for this purpose.
- Drive the vehicle to measure the current tire pressure.
