Remove the BDC control unit
Preliminary work
- Refer to DEACTIVATING VEHICLE ELECTRICAL SYSTEM
- Refer to REMOVING RIGHT FOOTWELL TRIM .
- Refer to REMOVING THE DOOR SILL COVER STRIP ON THE RIGHT .
- Refer to REMOVING THE LOWER RIGHT A-PILLAR TRIM PANEL .
WARNING:
Work on components with requirements for a secure energy supply
.
Ensure function after a repair .
Ensure function after a repair .
- Lines are allowed to have only one repair area.
- Notices in the diagnostic system circuit diagrams must be observed.
- When components are replaced, the notices in the applicable BMW parts catalogue must be observed.

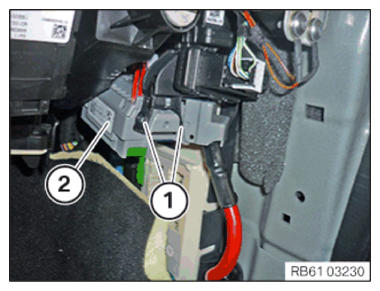

- Unlock detents (1) and feed out the power distribution box (2) downward.

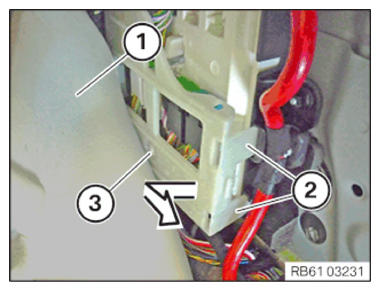

- Fold the carpet (1) to the side.
- Loosen the detents (2).
- Guide out cover (3) in the arrow direction.
- Unlock all plug connections and disconnect.

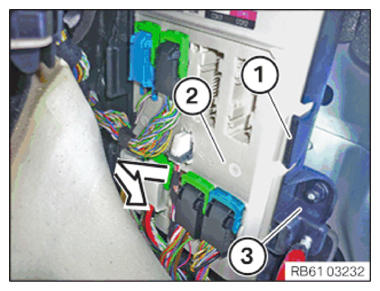

- Release detent (1).
- Maneuver the BDC control unit (2) out of the holder (3) in the arrow direction.
