Install the BDC control unit
WARNING:
Work on components with requirements for a secure energy supply
.
Ensure function after a repair .
Ensure function after a repair .
- Lines are allowed to have only one repair area.
- Notices in the diagnostic system circuit diagrams must be observed.
- When components are replaced, the notices in the applicable BMW parts catalogue must be observed.

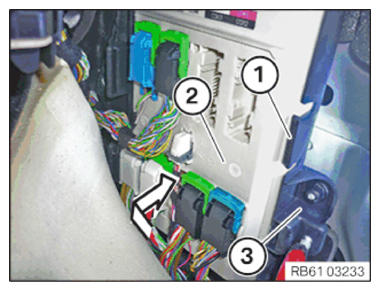

- Maneuver the BDC control unit (2) into the holder (3) in the arrow direction.
- Snap the BDC control unit (2) into the detent (1) .
- Connect all connectors and lock.

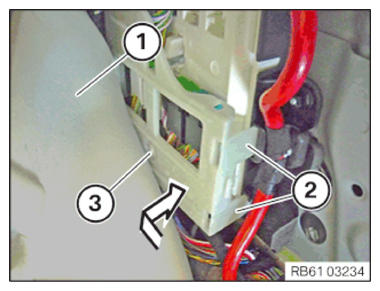

- Insert the cover (3) in arrow direction and snap it into the locks (2) .
- Position the carpet (1) .
- Insert the power distribution box (2) to the top and snap it correctly into the locks (1) .
Follow-up work
- Refer to INSTALLING THE BOTTOM RIGHT A-PILLAR TRIM PANEL .
- Refer to INSTALLING THE RIGHT DOOR SILL COVER STRIP .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
