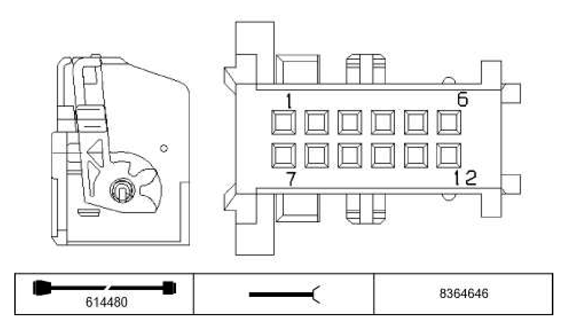

Steering Column Switch Cluster A83*2B Connector End View
Pin Assignments At Plug Connector A83*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | -- | Not used | |
| 3 | A | Signal Shift paddles | Front Electronic Module |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | -- | Not used | |
| 7 | M | Ground | Front Electronic Module |
| 8 | -- | Not used | |
| 9 | E | Power supply, terminal 30F | Fuse F10 |
| 10 | -- | Not used | |
| 11 | E/A | LIN bus signal | Front Electronic Module |
| 12 | E/A | LIN bus signal | Front Electronic Module |
