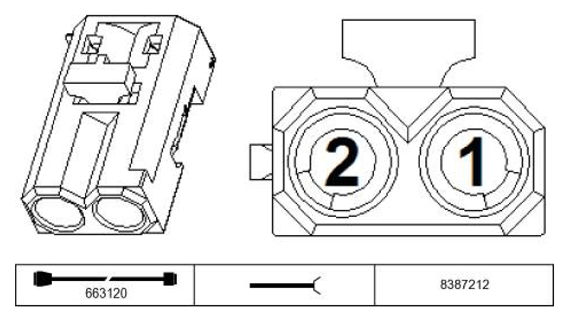

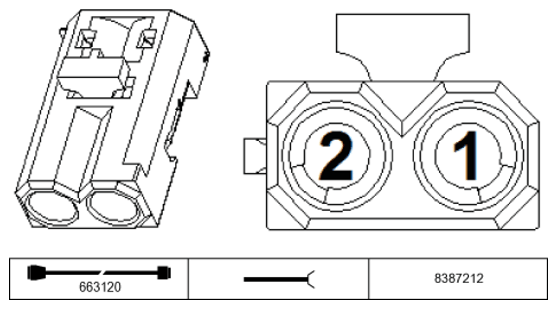

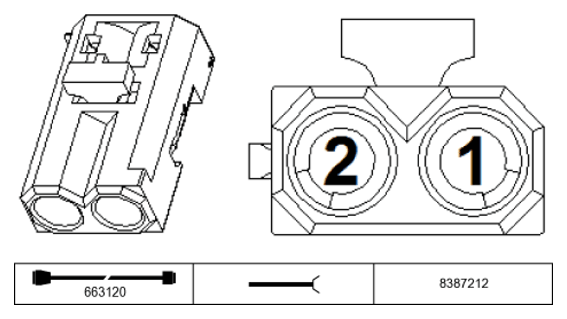

Instrument Cluster Control Unit A71*2B Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector A71*2B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
E/A |
MOST bus signal |
Components corresponding to equipment |
| 2 |
E/A |
MOST bus signal |
Components corresponding to equipment |
