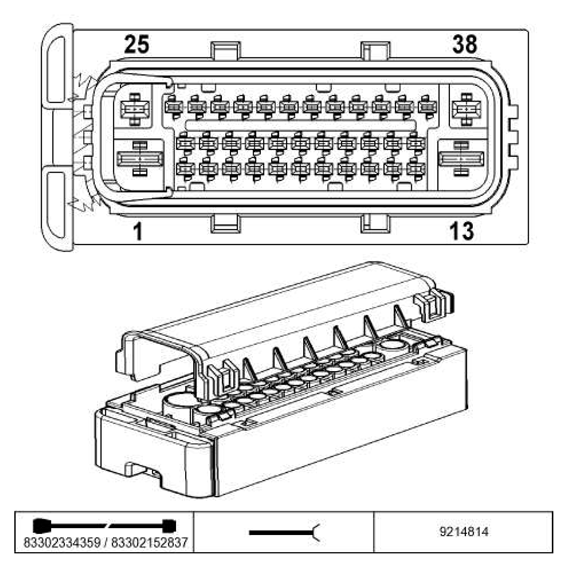

Dynamic Stability Control (DSC) A91*1B Connector End View
Pin Assignments At Plug Connector A91*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Supply, terminal 30 | Fuse F404 |
| 2 | E | Power supply, terminal 30B | Fuse F29 |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | -- | Not used | |
| 6 | E | Wake-up signal, terminal 15 | Connector, terminal 15 wake-up signal |
| 7 | -- | Not used | |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | E/A | FlexRay bus signal | Front Electronic Module |
| 11 | -- | Not used | |
| 12 | E | Signal, brake pad wear | Brake pad wear sensor, rear right |
| 13 | M | Ground | Ground point |
| 14 | -- | Not used | |
| 15 | E | Signal Brake pedal travel sensor | Brake pedal travel sensor B48 engine Hybrid |
| 16 | A | Voltage supply | Brake pedal travel sensor Hybrid |
| 17 | -- | Not used | |
| 18 | -- | Not used | |
| 19 | -- | Not used | |
| 20 | E | Signal Brake pedal travel sensor | Brake pedal travel sensor Hybrid |
| 21 | M | Ground | Brake pedal travel sensor Hybrid |
| 22 | E/A | FlexRay bus signal | Front Electronic Module |
| 23 | -- | Not used | |
| 24 | E | Signal, brake pad wear | Brake pad wear sensor, front left |
| 25 | E | Supply, terminal 30 | Fuse F58 |
| 26 | E | Wheel speed signal | Front right wheel speed sensor |
| 27 | E | Wheel speed signal | Front right wheel speed sensor |
| 28 | E | Switch signal | Brake fluid level switch |
| 29 | E | Wheel speed signal | Rear left wheel speed sensor |
| 30 | E | Wheel speed signal | Rear left wheel speed sensor |
| 31 | -- | Not used | |
| 32 | E | Signal, brake pad wear | Brake pad wear sensor, rear right |
| 33 | E | Wheel speed signal | Rear right wheel speed sensor |
| 34 | E | Wheel speed signal | Rear right wheel speed sensor |
| 35 | E | Signal, brake pad wear | Brake pad wear sensor, front left |
| 36 | E | Wheel speed signal | Front left wheel speed sensor |
| 37 | E | Wheel speed signal | Front left wheel speed sensor |
| 38 | -- | Not used |
