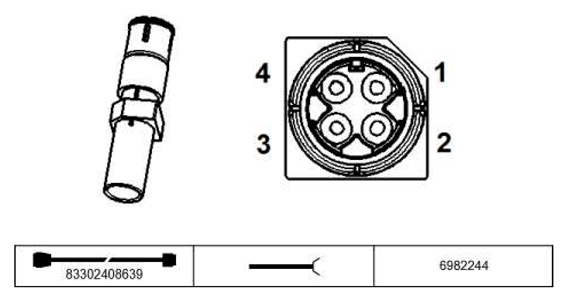

All-Round Vision Camera A167*7B Connector End View
Courtesy of BMW OF NORTH AMERICA, INC. Pin Assignments At Plug Connector A167*7B
| Pin |
Type |
Description /Signal type |
Connection /Measuring information |
| 1 |
A |
Power supply, camera |
Reversing camera |
| 2 |
E |
APIX data cable |
Reversing camera |
| 3 |
E/A |
LIN bus, camera |
Reversing camera |
| 4 |
E |
APIX data cable |
Reversing camera |
| 5 |
M |
Shield |
Reversing camera |
